Attaching Private Backend Instances to Internet-Facing Load Balancer

When developing an architecture for an application on AWS, it is highly recommended in cloud practices to provision application instances into private subnets with no direct access to the internet. This ensures the safety of the application. However, the application still needs to respond to user requests, hence the need for an interface to between the private instances an the users. This interface can be established with an Elastic Load Balancer.

Throughout this document, we would create the architecture below step by step to fufill this.

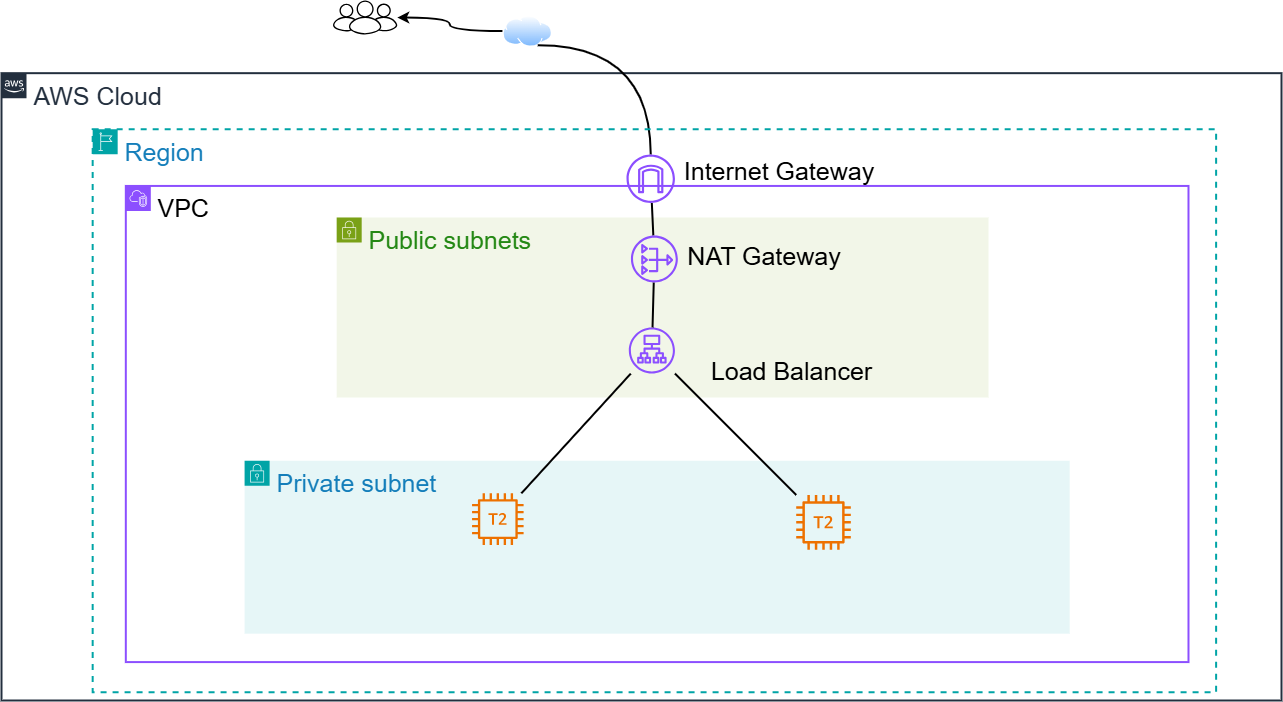

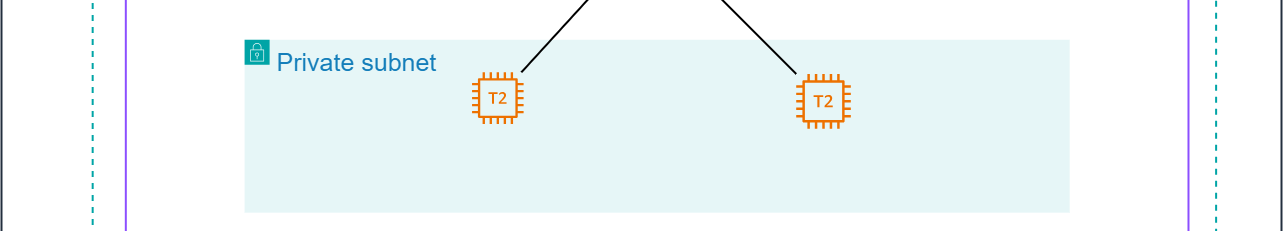

Topology Diagram

We will first create an isoloated network using a VPC and create 3 subnets inside itTwo public and one private

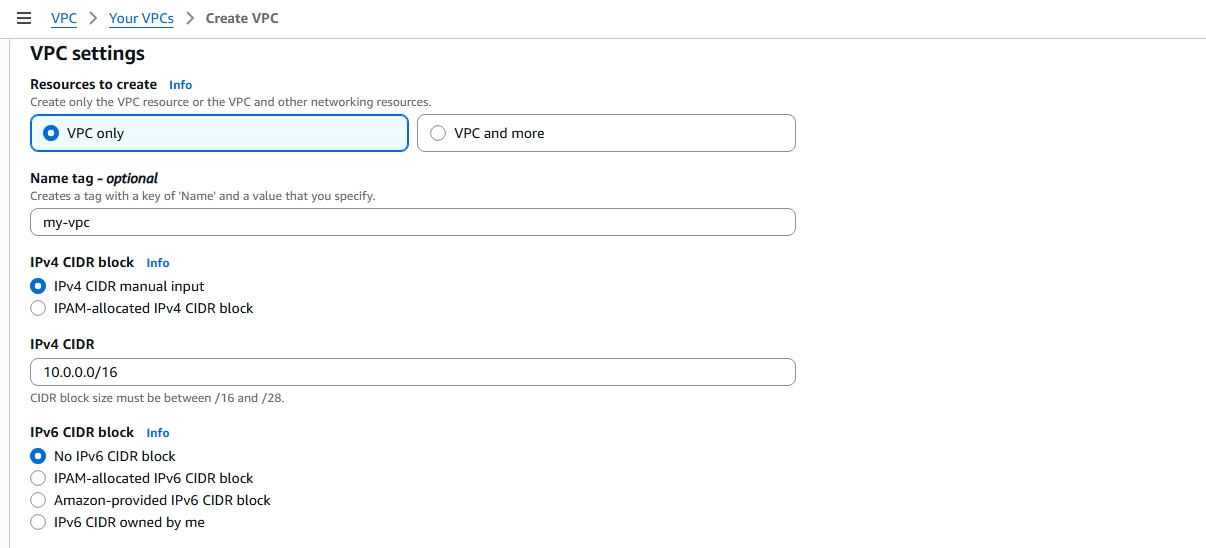

• In the Management Console search for VPC and open the VPC Dashboard.
• Create VPC.
• "VPC only" and provide a name ("my-vpc" in my case).
I will be using this name format for the entire project for simplicity, you can use any format that works for you• Set an IPv4 CIDR block of 10.0.0.0/16
• Review and Create VPC

Now to create subnets,
If you're wondering why create subnets by the way, they're used to sectionalize the VPC. They allow us to easily apply rules that determine which sections of the network have access to the internet and which do not.

Expand the VPC Dashboard sidebar if closed and go to Subnets

Create Subnet
Choose the VPC created earlier ("my-vpc").
We will create Public Subnets first

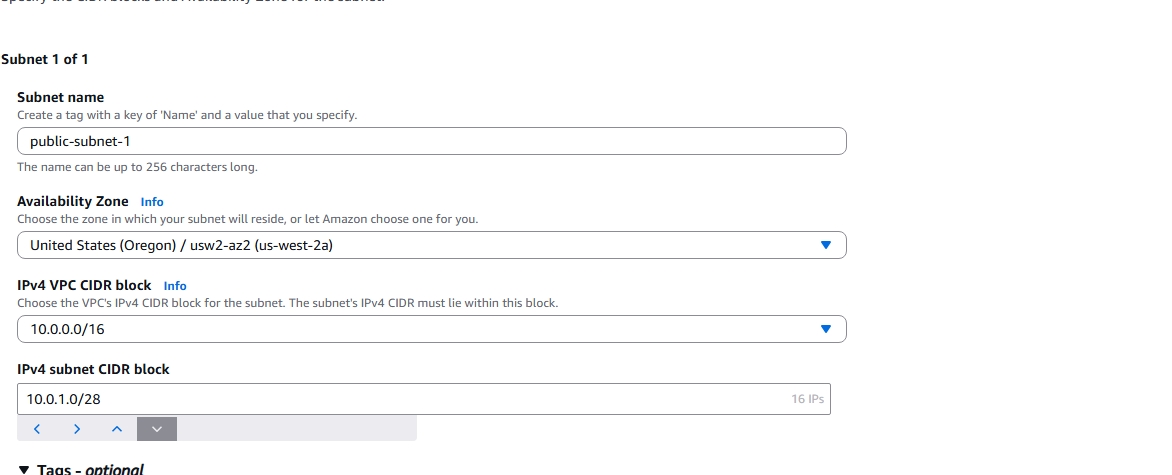

• So name it "public-subnet-1" since it's the only public subnet
• Set the Availability Zone to your preference (e.g., us-west-2a) and note it somewhere
becasue the second public subnet must be in a different AZ• Set the IPv4 subnet CIDR block to 10.0.1.0/28
• Review and click Create Subnet

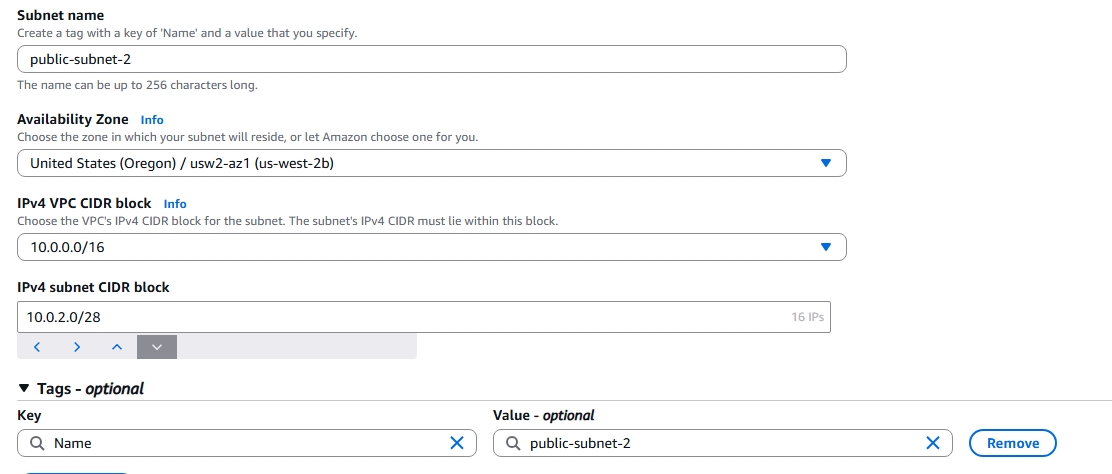

We will follow similar procedure to create the second public subnet
• Name: public-subnet-2
• Different AZ from prublic-subnet-1
• CIDR: 10.0.2.0/28

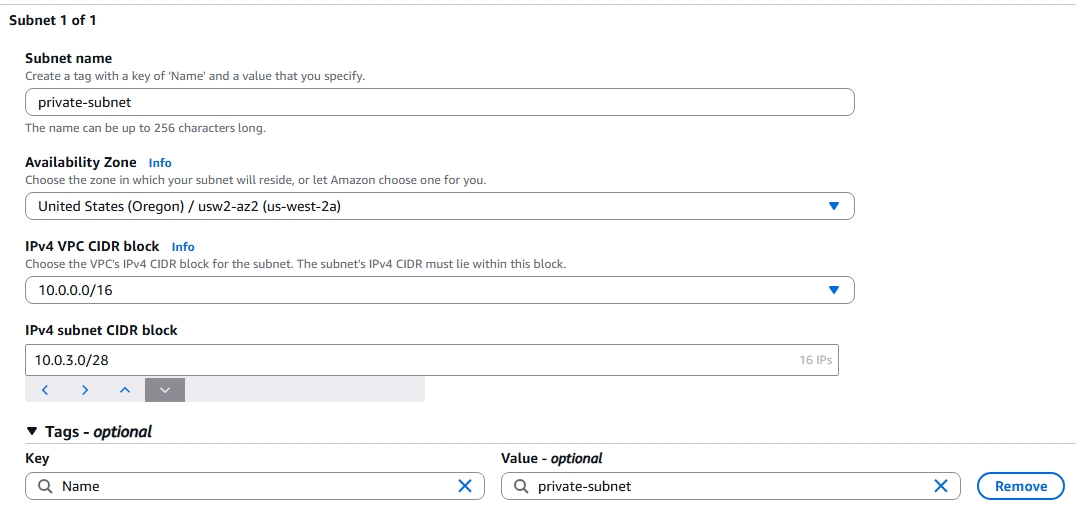

And then a private subnet
• Name: private-subnet
• Same AZ as public-subnet-1
• CIDR: 10.0.3.0/28

AWSTemplateFormatVersion: "2010-09-09"

Description: >-
  This template creates a loadbalancer for 2 instances in a private network
Parameters:
  VPCName:
    Description: The name of the VPC being created.
    Type: String
    Default: my-vpc

  AL2023AMI:
    Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>
    Default: /aws/service/ami-amazon-linux-latest/al2023-ami-kernel-default-x86_64

Mappings:
  SubnetConfig:
    VPC:
      CIDR: 10.0.0.0/16
    Public1:
      CIDR: 10.0.1.0/28
    Public2:
      CIDR: 10.0.2.0/28
    Private:
      CIDR: 10.0.3.0/28

Resources:
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      EnableDnsSupport: "true"
      EnableDnsHostnames: "true"
      CidrBlock: !FindInMap
        - SubnetConfig
        - VPC
        - CIDR
      Tags:
        - Key: Name
          Value: !Ref VPCName

  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 0
        - !GetAZs
      CidrBlock: !FindInMap
        - SubnetConfig
        - Public1
        - CIDR
      Tags:
        - Key: Name
          Value: public-subnet-1

  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 1
        - !GetAZs
      CidrBlock: !FindInMap
        - SubnetConfig
        - Public2
        - CIDR
      Tags:
        - Key: Name
          Value: public-subnet-2

  PrivateSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 0
        - !GetAZs
      CidrBlock: !FindInMap
        - SubnetConfig
        - Private
        - CIDR
      Tags:
        - Key: Name
          Value: private-subnet


While still in the VPC Dashboard we'll configure route tables.
The purpose of routing is to control the traffic flow between the subnets, or between the subnets and the internet

What we'll create:
• A Route Table for the Public Subnets with routes to an Internet Gateway to enable internet access.
• A Route Table for the Private Subnet with a route to a NAT Gateway to ensure they remain isolated from direct internet access.

Public route table will connect an internet gateway to all public subnets associated with it so they can have access to internet
Private route table on the other hand needs a NAT gateway to provide a restricted route to the internet for the private subnet

So let's create the two before we move on
Choose "Internet gateways" from the sidebar and click on Create Internet Gateway.
• Name it "my-igw"
andCreate internet gateway.

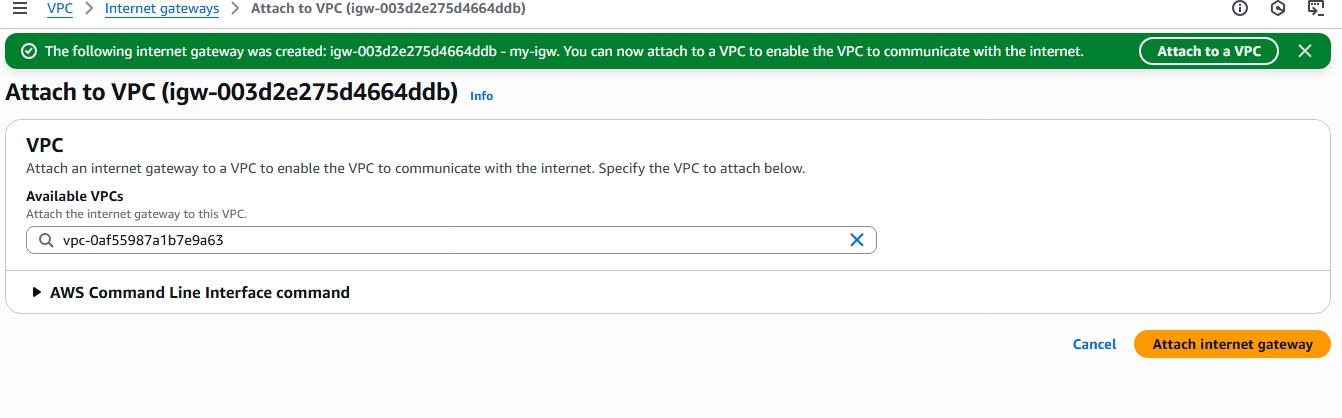

Select Attach to VPC from the green pop-up and select the VPC ("my-vpc").

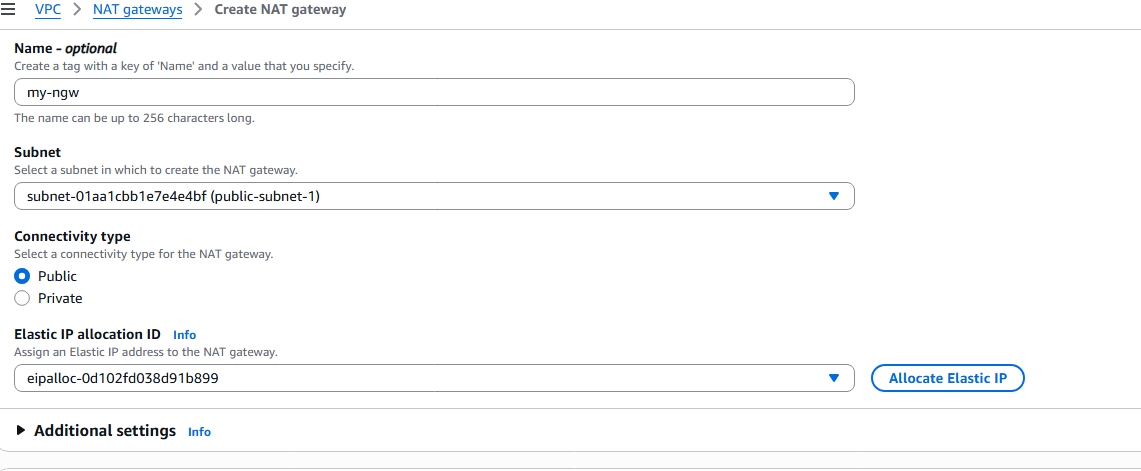

Now go to "NAT Gateways" and Create NAT Gateway.
• Name: "my-ngw"
• Choose the first public subnet ("public-subnet-1")
A NAT Gateway must always be in a public subnet• Allocate an Elastic IP
A elastic ip gives the NAT Gateway a static IP address• Review andCreate NAT gateway

Now that we have both Internet Gateway and NAT Gateway created, we can create the route tables Open "Route Tables" from the side menu

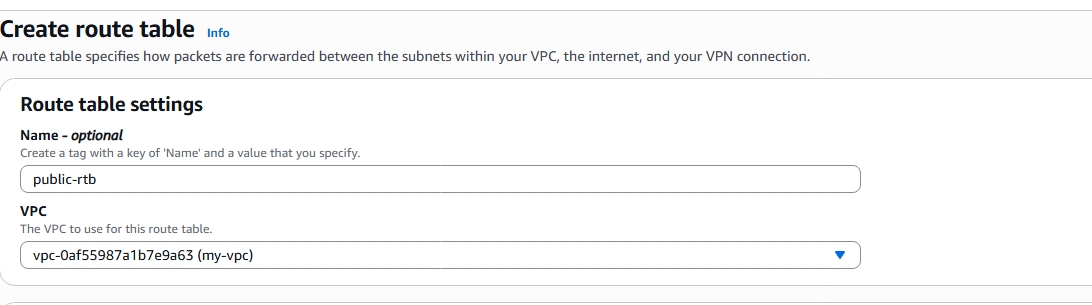

• Create Route Table.
• We'll name it "public-rtb" and associate it with the VPC.
• Create route table

You'll be redirected to the dashboard of the just created route table

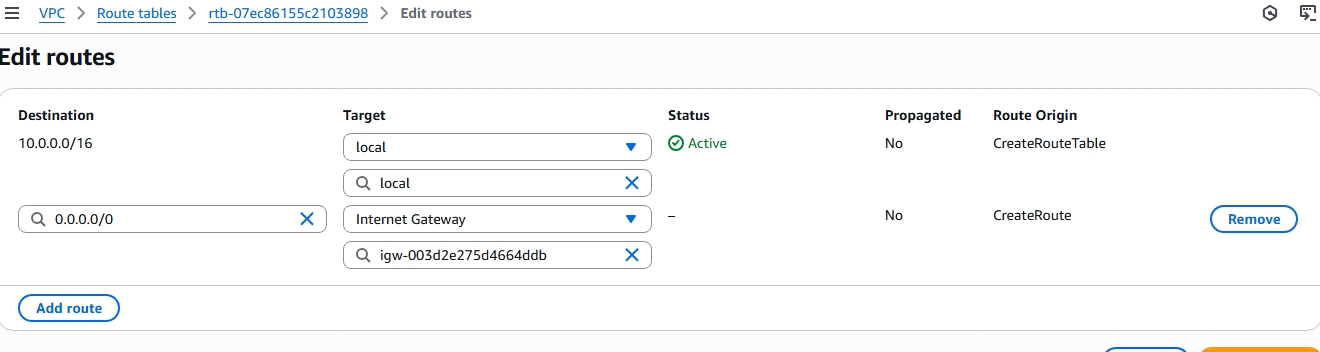

There, select the "Routes" tab. Click on Edit routes and then Add route.
• Set the destination to 0.0.0.0/0 and the target to the Internet Gateway("my-igw")
Save changes

We need to associate this route table with the public subnets so they're reachable from the internet.

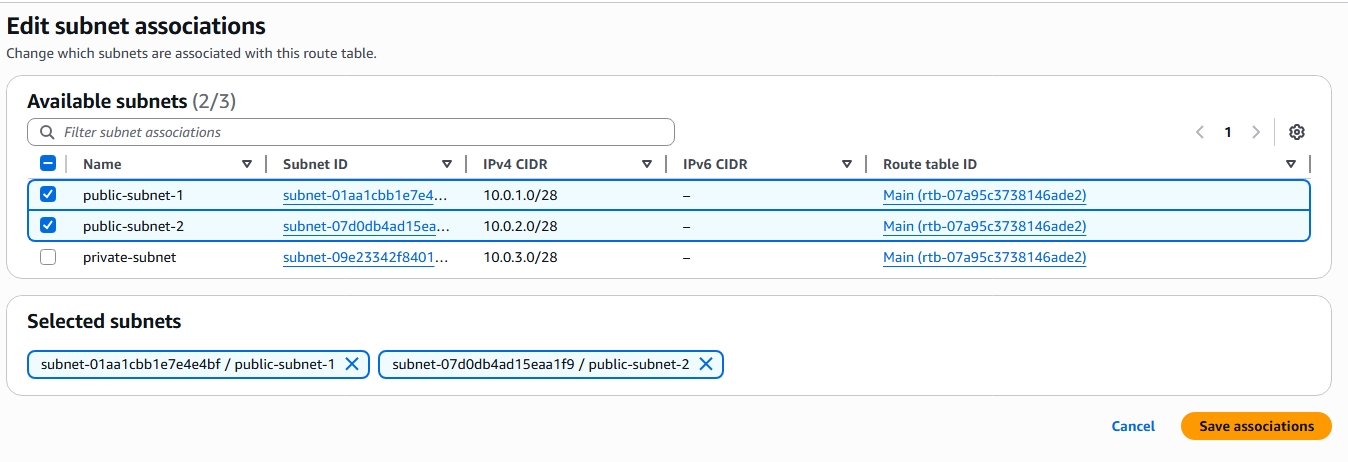

• Select the "Subnet associations" tab and Edit subnet associations.
• Select the public subnets ("public-subnet-1", "public-subnet-2")
Save associations

We repeat the process to create a route table for the private subnet.
• We'll name it "private-rtb" and associate it with the VPC.
• In the "Routes" tab, add a route with destination 0.0.0.0/0 and target the NAT Gateway ("my-ngw").
• In the "Subnet associations" tab, associate the private subnet ("private-subnet) with this route table.

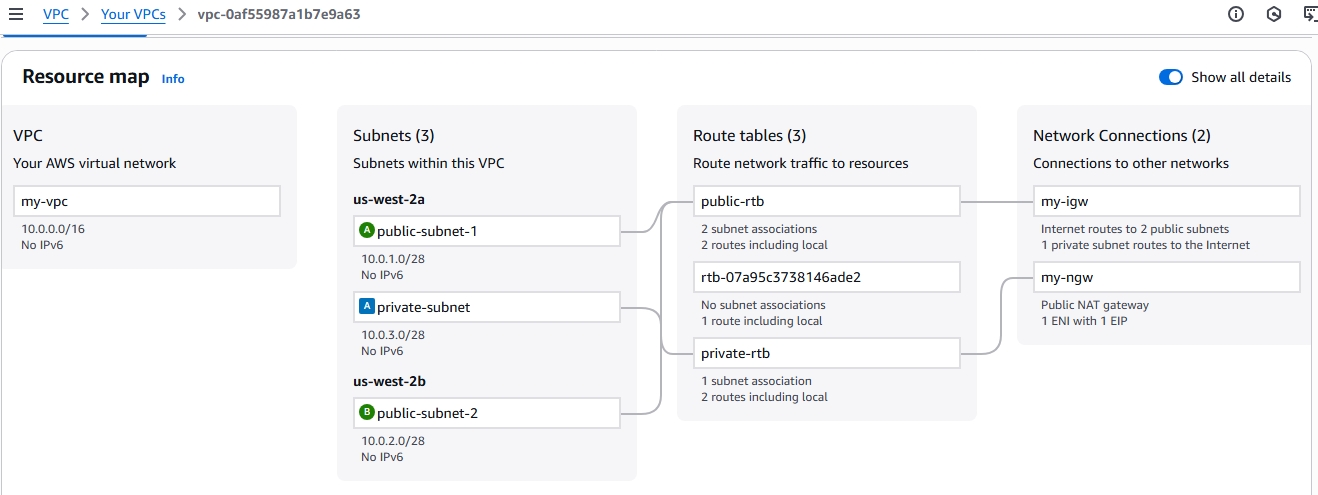

If everything is done correctly the VPC resource map should look like this.
The additional route table was created by default by the lab environment I used. It doesn't affect anything

# Resources: ...

# VPC and Subnets section
#    ....


# Routing section

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: my-igw

  GatewayToInternet:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway

  ElasticIP:
    Type: AWS::EC2::EIP
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: ngw-eip

  NATGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt ElasticIP.AllocationId
      SubnetId: !Ref PublicSubnet1
      Tags:
        - Key: Name
          Value: my-ngw

  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: public-rtb

  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: GatewayToInternet
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      RouteTableId: !Ref PublicRouteTable

  PublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      RouteTableId: !Ref PublicRouteTable


  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: private-rtb

  PrivateRouteToNAT:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NATGateway

  PrivateSubnetRouteTableAssociation1:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet
      RouteTableId: !Ref PrivateRouteTable



In this step we will set up Security Groups to control access to the instances and load balancer we will provision
Security Groups act as virtual firewalls that regulate inbound and outbound traffic. We will create rules to allow only necessary traffic, enhancing the security of our application.

What we'll create:
• A Security Group for the Classic Load Balancer to allow ssh and http.
• A Security Group for Instances to allow traffic from the Load Balancer group only

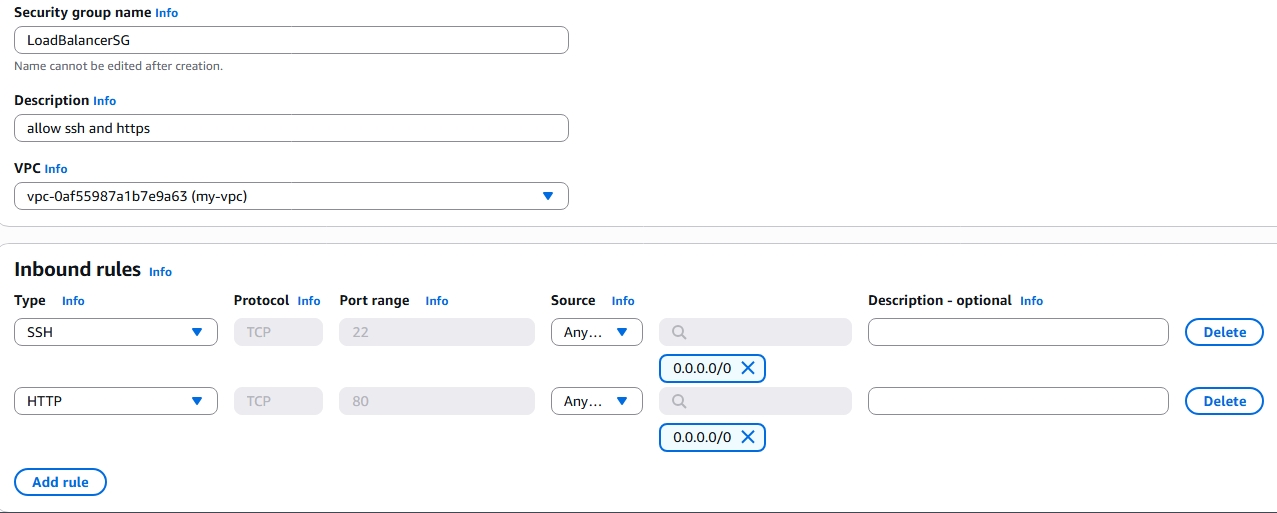

We'll start with the Classic Load Balancer Group
• Go to Security in the VPC Dashboard.
• Create Security Group.
• We'll name it "LoadBalancerSG"
• Add a description
• Select VPC (my-vpc)

For Inbound rules:
• Add a rule for SSH access from anywhere
• Choose "SSH" from the dropdown
• Set the Source to "Anywhere IPv4"
• Add another rule for HTTP also with Source "Anywhere IPv4"
• Review andCreate security group

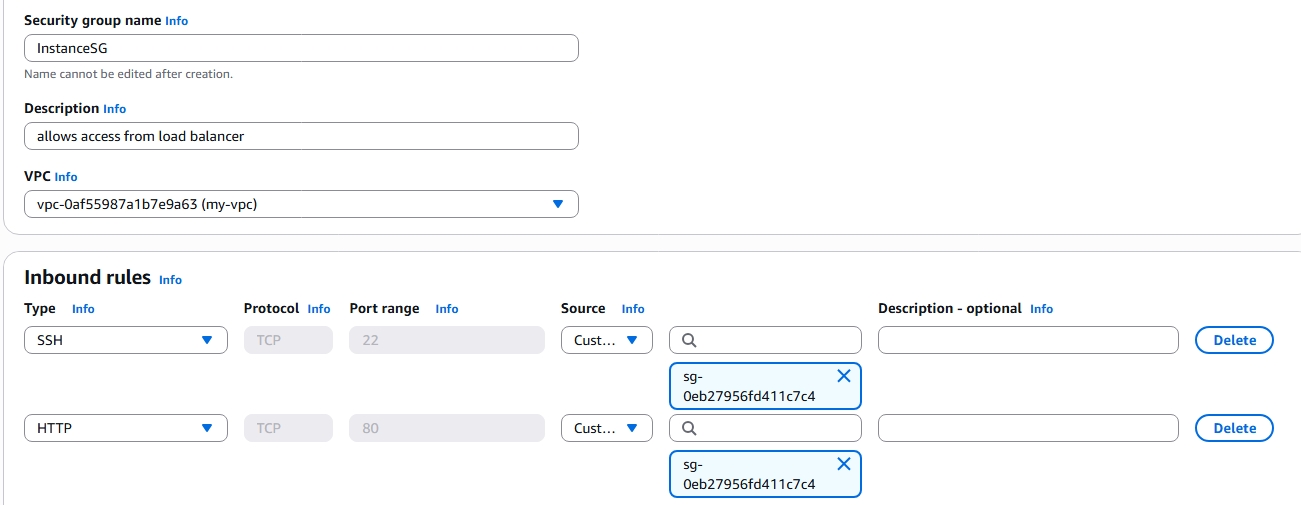

For Instance Security Group.
• We'll name it "InstanceSG"
• Add inbound rules:
• SSH - Source: Custom - "LoadBalancerSG" (search "sg" and select LoadBalancerSG from the dropdown)
• HTTP - Source: Custom - also from "LoadBalancerSG"

# Resources: ...

# VPC and Subnets section
#    ....
# Routing section
#    ....

# Security groups

  LoadBalancerSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Enable SSH and HTTP access from anywhere
      VpcId: !Ref VPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          CidrIp: 0.0.0.0/0
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          CidrIp: 0.0.0.0/0
      Tags:
        - Key: Name
          Value: LoadBalancerSG

  InstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: Enable HTTP and SSH access from Load Balancer Security Group
      VpcId: !Ref VPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 80
          ToPort: 80
          SourceSecurityGroupId: !Ref LoadBalancerSecurityGroup
        - IpProtocol: tcp
          FromPort: 22
          ToPort: 22
          SourceSecurityGroupId: !Ref LoadBalancerSecurityGroup
      Tags:
        - Key: Name
          Value: InstanceSG



In this step, we will launch two EC2 instances, configure them with InstanceSG security group created in the previous step, and set up user data scripts to automate the installation of necessary software.

• Search for "EC2" in the Search bar and open the EC2 Dashboard.
• Click on "Launch Instance".
• Set number of instances to 2 (find this in the panel on the right, hopefully aws had not moved it somewhere else at the time you read this document)
• We're creating 2 instances at a go so we won't set name tags yet.
• Choose an Amazon Machine Image (AMI). Select "Amazon Linux 2023".

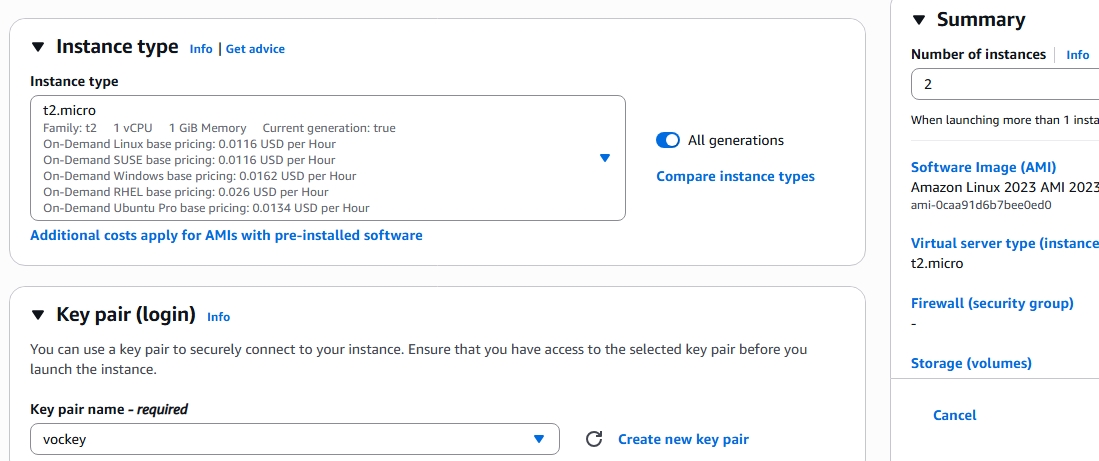

• Choose an Instance Type. Select "t2.micro" (free tier).
• Select a key pair for SSH access. If you don't have one, create a new key pair and download the ".pem" file
will be required to connect to the instances later when we test the deployment.

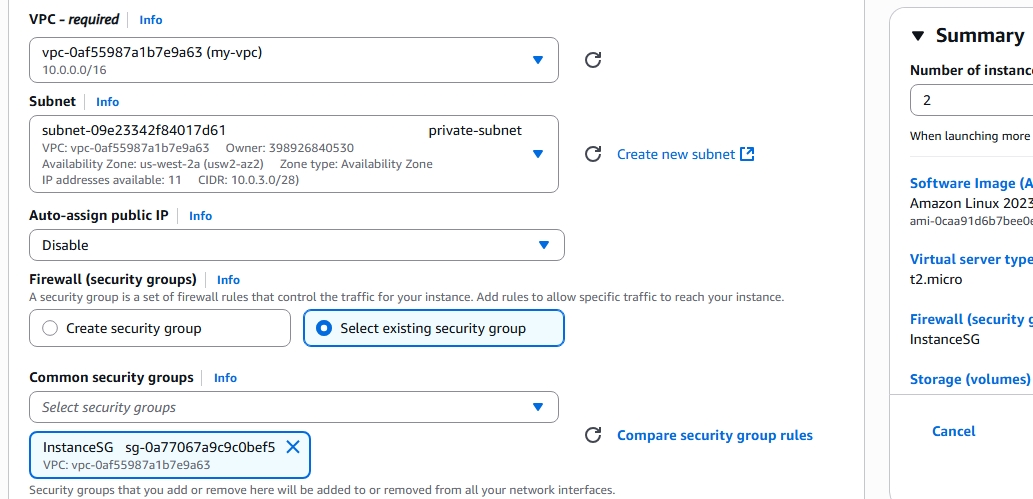

Edit Network Settings:
- Select the VPC (my-vpc)
- Select the the subnet (private-subnet)
- Disable Auto-assign Public IP
the instances are private and don't require a public IP.- Under Security Group, "Select an existing security group" and select the Instance security group (InstanceSG)

• Leave everything else as default and scroll to Advanced Details

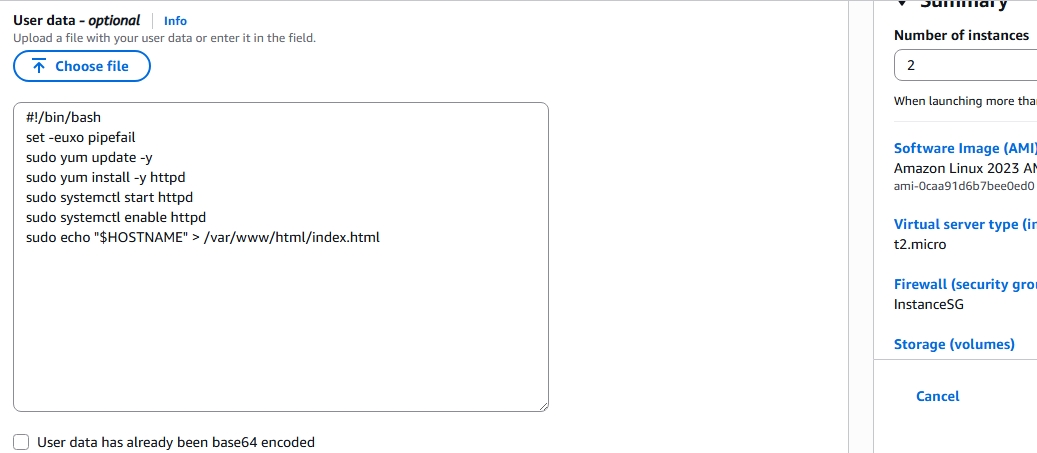

• In the User Data section, copy and paste the code below:

#!/bin/bash
set -euxo pipefail
sudo yum update -y
sudo yum install -y httpd
sudo systemctl start httpd
sudo systemctl enable httpd
sudo echo "$HOSTNAME" > /var/www/html/index.html


• Review andLaunch instance

Once the instances finish creating, we'll go to the dashboard and assign them names so we can easily identify them later
- Name them "Instance1" and "Instance2"

# Resources: ...

# VPC and Subnets section
#    ....
# Routing section
#    ....
# Security groups
#    ....

# EC2 Instances

  Instance1:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: t2.micro
      KeyName: vockey
      ImageId: !Ref AL2023AMI
      NetworkInterfaces:
        - AssociatePublicIpAddress: false
          DeviceIndex: 0
          SubnetId: !Ref PrivateSubnet
          GroupSet:
            - !Ref InstanceSecurityGroup
      UserData:
        Fn::Base64: !Sub |
          #!/bin/bash
          set -euxo pipefail
          sudo yum update -y
          sudo yum install -y httpd
          sudo systemctl start httpd
          sudo systemctl enable httpd
          sudo echo "$HOSTNAME" > /var/www/html/index.html
      Tags:
        - Key: Name
          Value: Instance1

  Instance2:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: t2.micro
      KeyName: vockey
      ImageId: !Ref AL2023AMI
      NetworkInterfaces:
        - AssociatePublicIpAddress: false
          DeviceIndex: 0
          SubnetId: !Ref PrivateSubnet
          GroupSet:
            - !Ref InstanceSecurityGroup
      UserData:
        Fn::Base64: !Sub |
          #!/bin/bash
          set -euxo pipefail
          sudo yum update -y
          sudo yum install -y httpd
          sudo systemctl start httpd
          sudo systemctl enable httpd
          sudo echo "$HOSTNAME" > /var/www/html/index.html
      Tags:
        - Key: Name
          Value: Instance2




In this section we are going to a create The Load Balancer which will forward user requests to the instances

Locate Load Balancers on the EC2 sidebar under "Load Balancing"
• Click on Create load balancer
• Choose Classic Load Balancer
• We'll name it "my-alb"
• We'll make it internet-facing

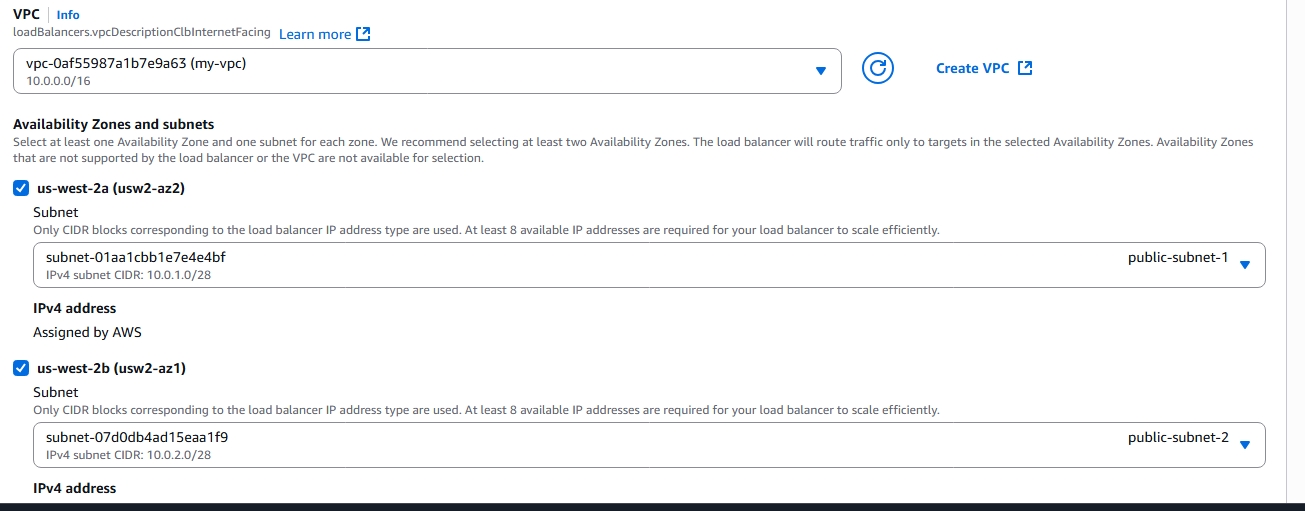

• Select the VPC
• Check the 2 AZs and select the public subnet in each
• Choose "LoadBalancerSG" as the security group

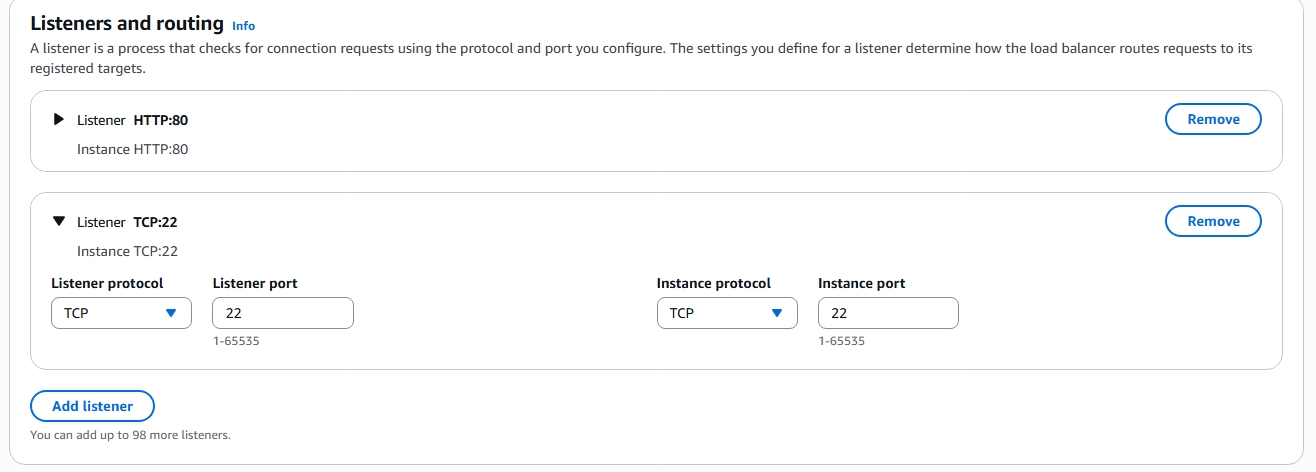

Inside listeners and routing:
-Set an HTTP listener on port 80
-Set another listener for SSH (tcp on port 22)

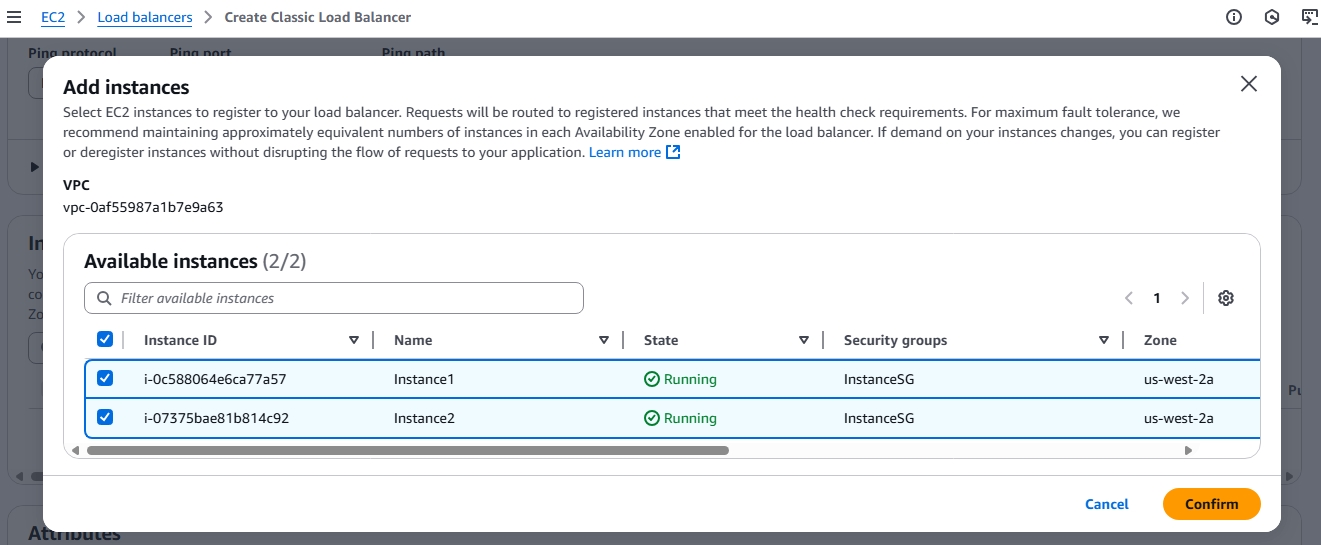

Add instances

- Instance1 and Instance2 if you named them so

Leave everything else as-is andCreate load balancer

It will take a few minutes to set up

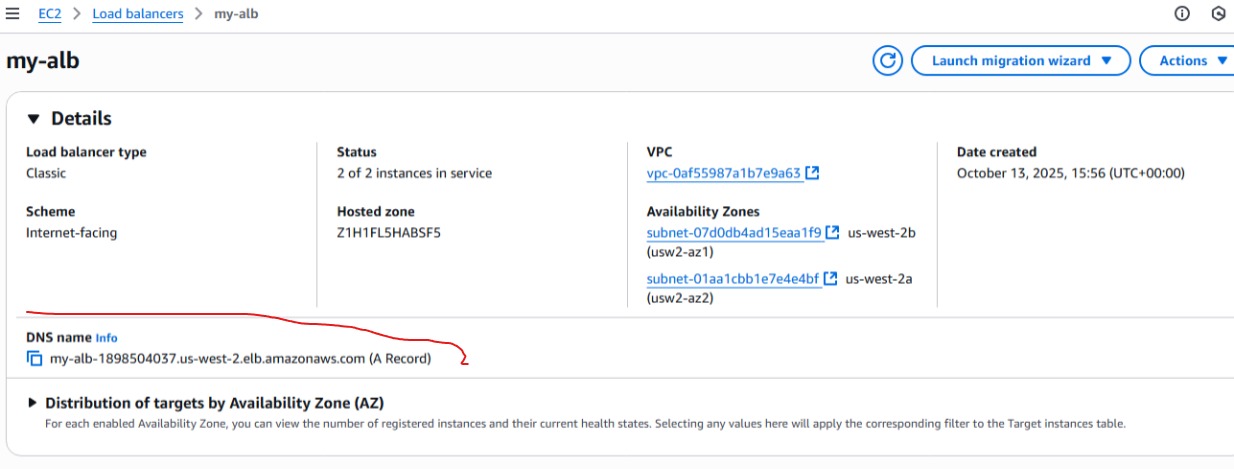

Once it's done, copy the ALB DNS name and note it somewhere

# Resources: ...

# VPC and Subnets section
#    ....
# Routing section
#    ....
# Security groups
#    ....
# EC2 Instances
#    ....
# Load Balancer

  LoadBalancer:
    Type: AWS::ElasticLoadBalancing::LoadBalancer
    Properties:
      Scheme: internet-facing
      LoadBalancerName: my-alb
      Subnets:
        - !Ref PublicSubnet1
        - !Ref PublicSubnet2
      Listeners:
        - LoadBalancerPort: 80
          InstancePort: 80
          Protocol: HTTP
          InstanceProtocol: HTTP
        - LoadBalancerPort: 22
          InstancePort: 22
          Protocol: TCP
          InstanceProtocol: TCP
      SecurityGroups:
        - !Ref LoadBalancerSecurityGroup
      HealthCheck:
        Target: HTTP:80/index.html
        HealthyThreshold: '3'
        UnhealthyThreshold: '5'
        Interval: '30'
        Timeout: '5'
      Instances:
        - !Ref Instance1
        - !Ref Instance2





In this final step, we will test the entire setup to ensure that all components are functioning correctly. We will verify that the Load Balancer can respond to requests, and also test if it can connect to the instances via ssh

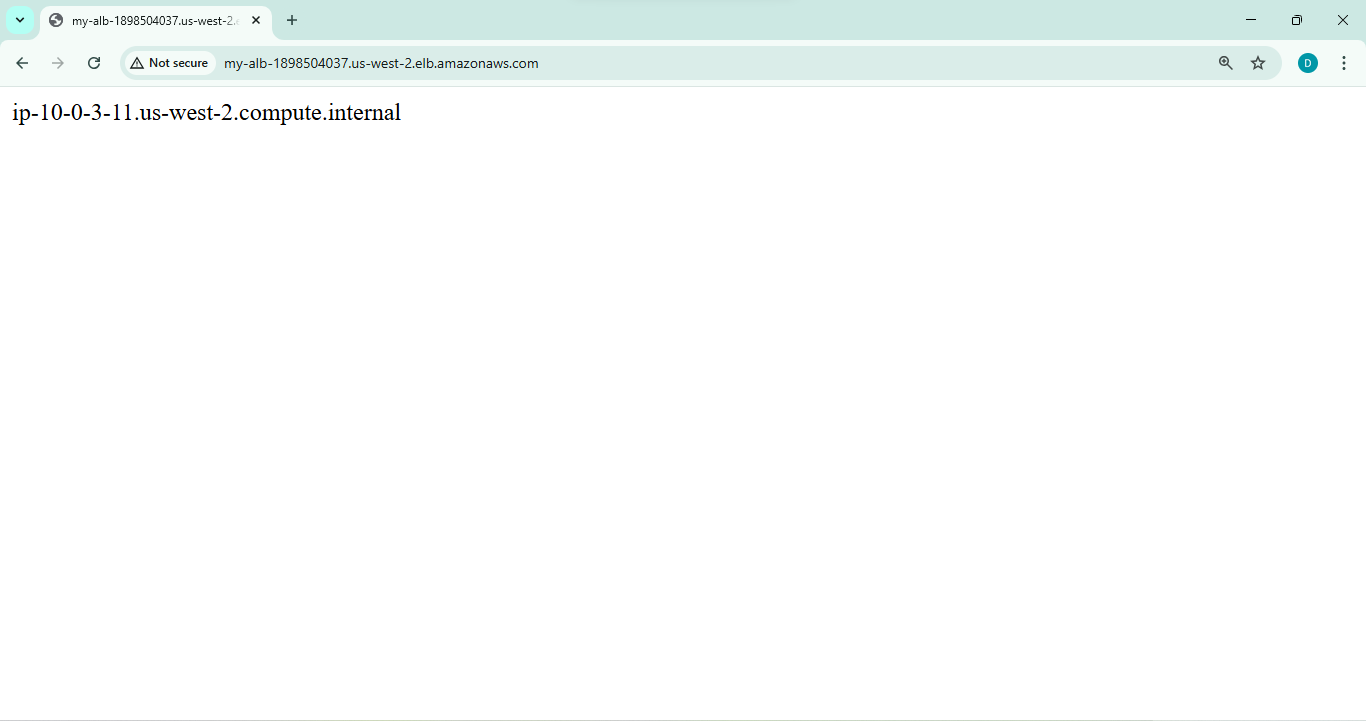

Open a browser and run http://ALB-DNS-NAME/ and you see the hostname of the instance the Load balancer routed the request to
Note that if you run https insted of http it will not work because of the rules in the secuirty

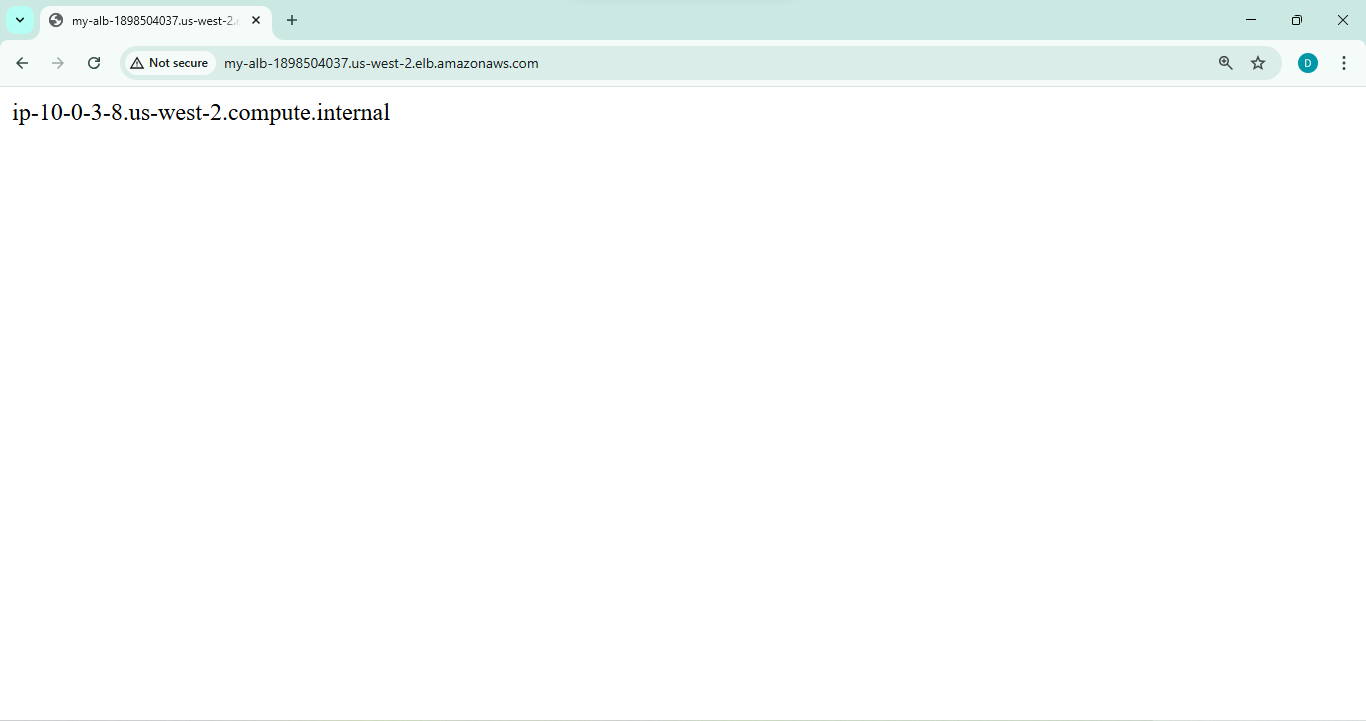

Refresh the page a few more times until the Hostname changes to that of the second instance

Confirmed! the Load Balancer is working as expected.

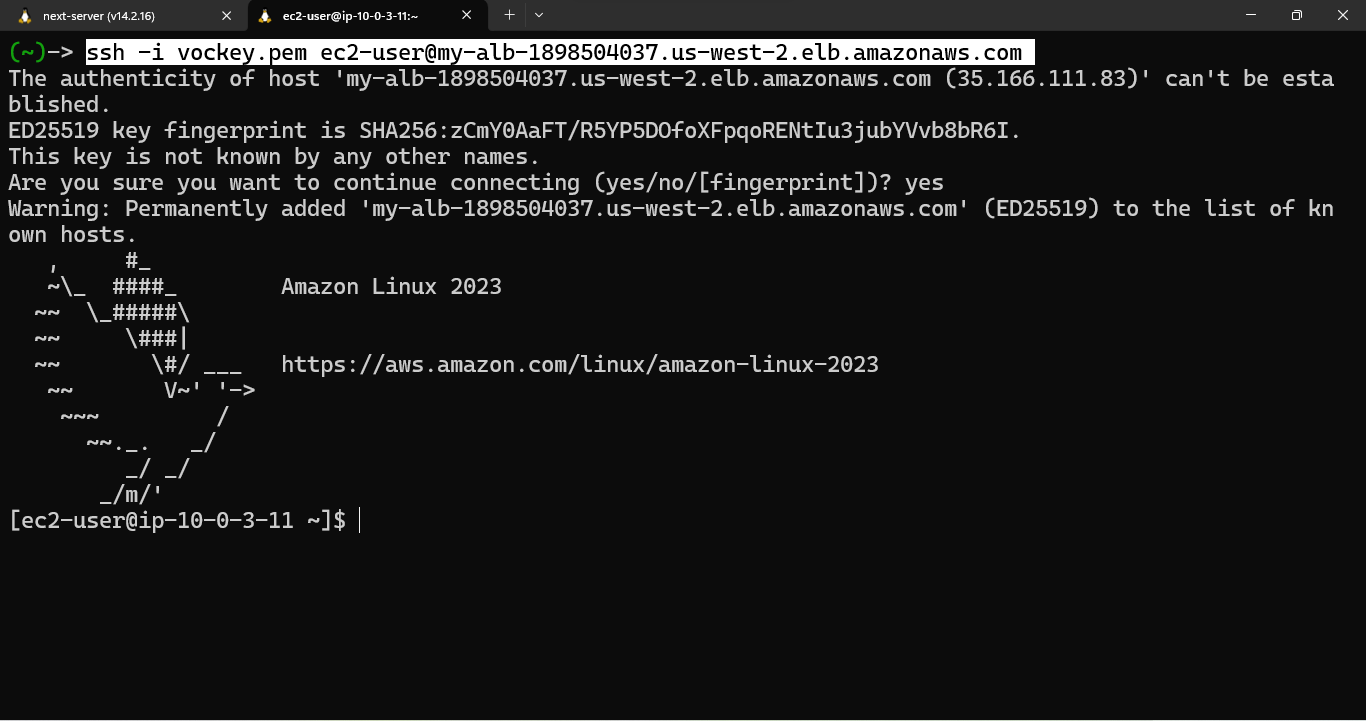

Let's try to ssh into either of the instances through the Load Balancer
ssh -i YOUR-KEY-PAIR.pem ec2-user@ALB-DNS-NAME

We have confirmed the whole setup is working as expected!

You can run further tests on your own to verify if the security groups are working as intended
For example try to send http requests to the site on a different port (eg, 54322) to see if it will respond or not
You can also try to ssh into the instances directly using their private IPs to see if it will work or not

Congratulations!

Thank you for following this project on establishing a connection between a load balancer and application backend private instances. I hope you found it informative and helpful. If you have any questions or need further assistance, feel free to reach out!
